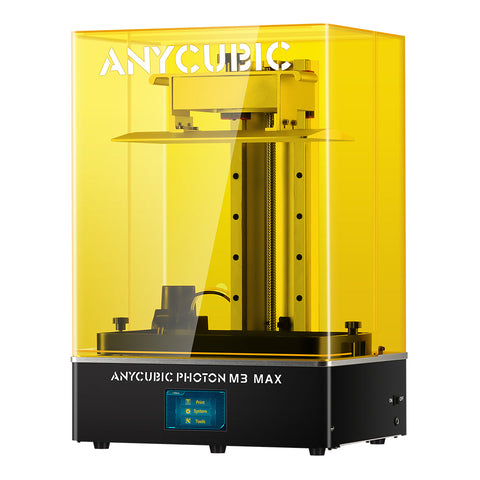

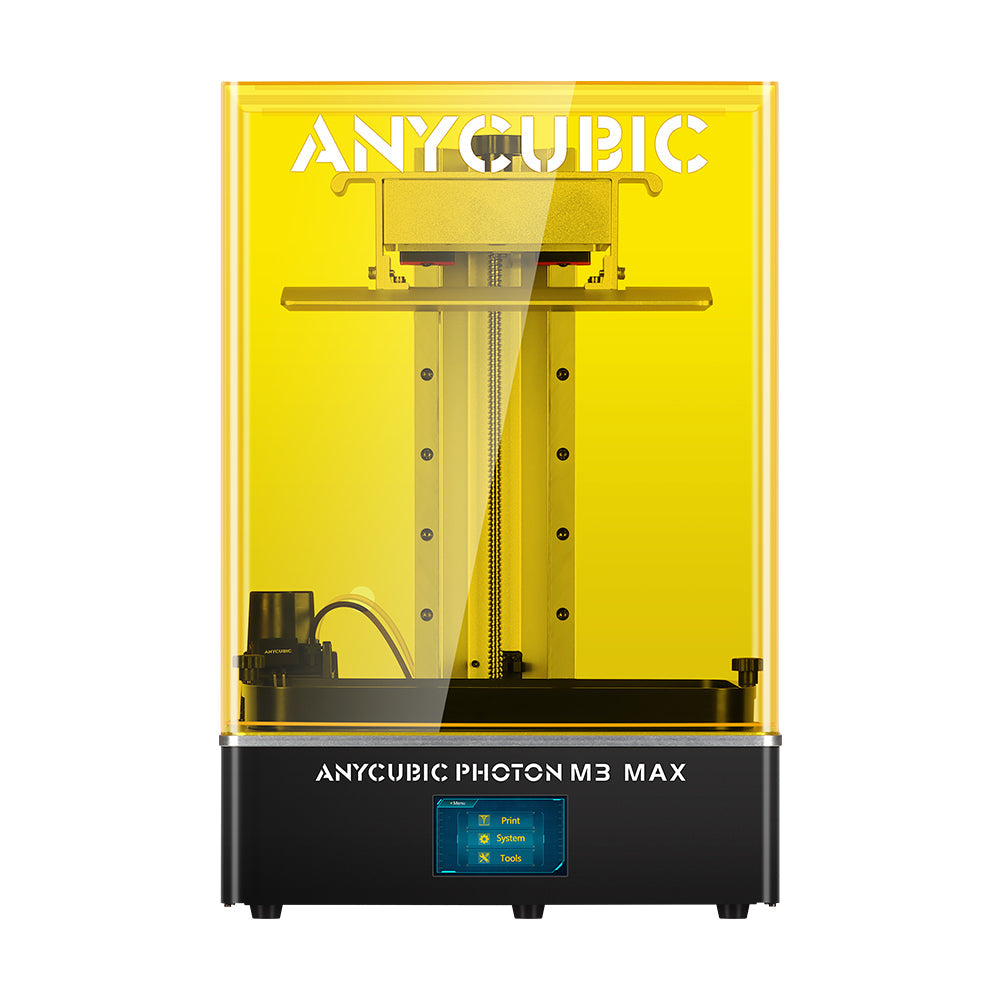

Anycubic Photon M3 Max SLA UV Resin 3D Printer 164x298x300mm

13" 7K Monochrome Screen
Bigger Volume, greater Freedom.

Anycubic Auto Resin Filler
Smart resin filling, Stopless Printing.

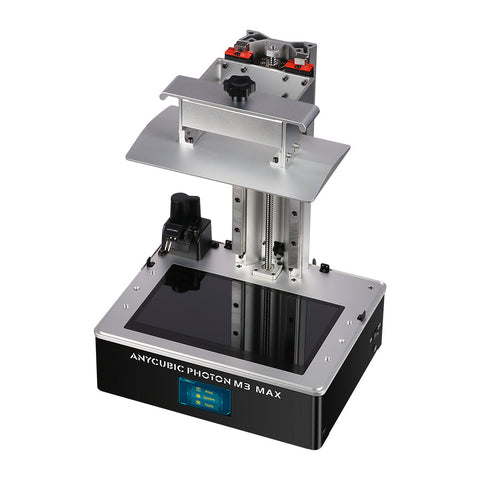

High Precision Ball Screw
Makes detailed printing experience.

Large Building Size
298*164*300mm.

Technical Specifications

• Exposure screen: 13.6" monochrome
• Printing accuracy: 6,480 x 3,600 px (7K)
• Contrast ratio: 450:1
• Light source: Parallel matrix (LED lights x 84)
• Build plate: Laser engraved platform
• Printing speed: ≤ 6 cm/hr
• Control panel: 4.3" resistive touch-control
• Data input: USB-A 2.0
• Rated power: 120W
• Print size: 30.0 x 29.8 x 16.4 cm (HWD)
• Printing volume: 14.7L
• Machine size: 59.6 x 40.0 x 40.8 cm (HWD)
• Machine weight: 26 kg




  Unleash Your Imagination



  Equipped with the industry's first 13.6 inch large screen, building size of 298*164*300mm unleash your creativity and a whole new world of display.

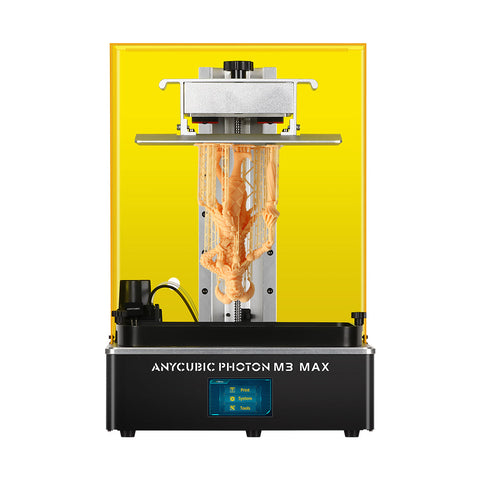

  Well-defined Details



  7K resolution and high precision ball screw Z axis rail, both make detailed printing experience.

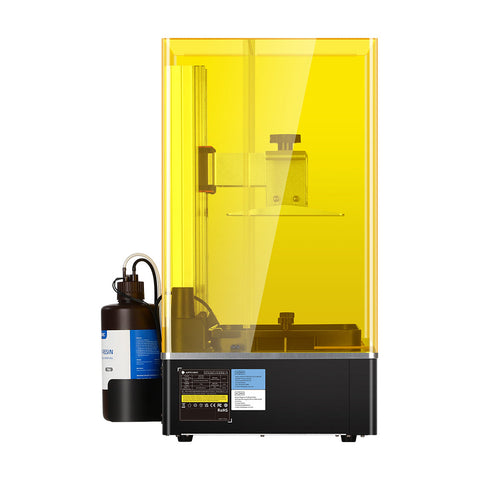

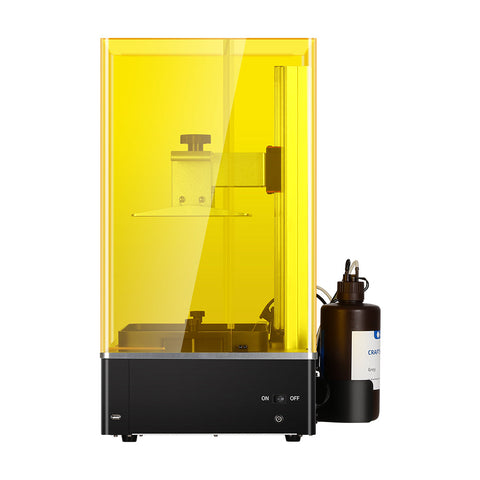

  Smart Resin Filling

  New features live! Anycubic Auto Resin Filler helps resin intelligent filling and intelligent stopping after enough. Hands free resin filling. Rest without worries!

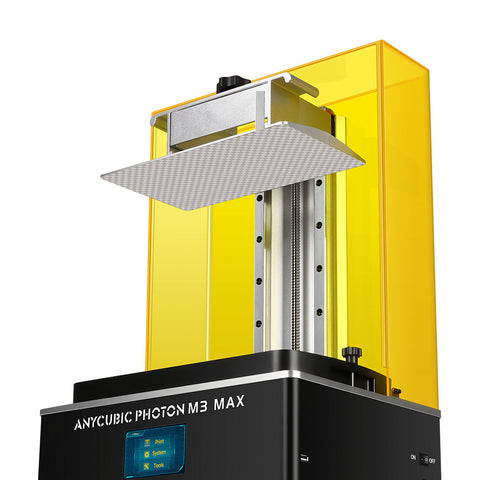

  Foundation Is the Key



  Repeatedly designing and testing laser engraved platform can significantly increase the adhesion of the platform and improve the success rate of printing.



  Speed Up Your Experience



  Anycubic LightTurbo light source system with the LED lights in matrix array make up a powerful light source, enabling fast printing.



  Sharp Details Everytime



  Contrast ratio up to 450:1, 125% higher than other resin printers (200:1), improves the details.



  Save More Precious Time



  The fastest printing speed can reach 60mm/h, and it only takes 2 hours to print the 120mm high miniarure, which is 1 hour less than the 3 hours printing of other resin printers.



  Protect What Matters



  Add dedicated and replaceable screen protector to protect the premium 13.6'' 7K screen and feel relief.



  Fully Compatible Slicer



  Anycubic Photon Workshop is fully compatible with all Anycubic resin printers. It is also perfect for setting some parameter, and also saves the high amount of money spending on third-party slicing software, free and professional.

  Parts List




  Funnel




  Glove




  Mask




  Tool set




  Platform




  Power-cord




  Resin Vat




  Scraper




  User manual




  Screws




  USB memory




  Screen protector




  Levelling paper




  Auto-feed unit
