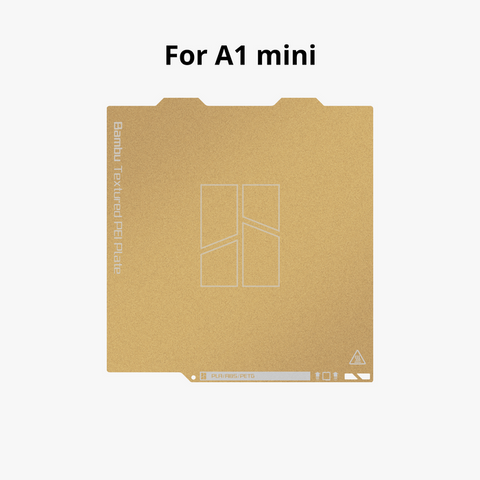

Bambu Textured PEI Plate

This item is currently restocking and may take up to 3-6 weeks to ship.

$59.90 ~~$70.00~~

Quantity

Qty

Description

Things to know before use

Before auto-leveling, it is necessary to repeatedly rub the nozzle in the special wiping area of the build plate to completely remove any residual material at the tip of the nozzle. The coating in the special-designed wiping area will gradually become worn over time. This is normal and does not affect print quality or nozzle lifetime, so there is no need to worry about any quality issues.

Bambu Lab recommends only using Bambu Lab official glue on the Cool Plate, and can not be held responsible for any damage caused to plates as a result of using third-party glue on build plates.

Overview

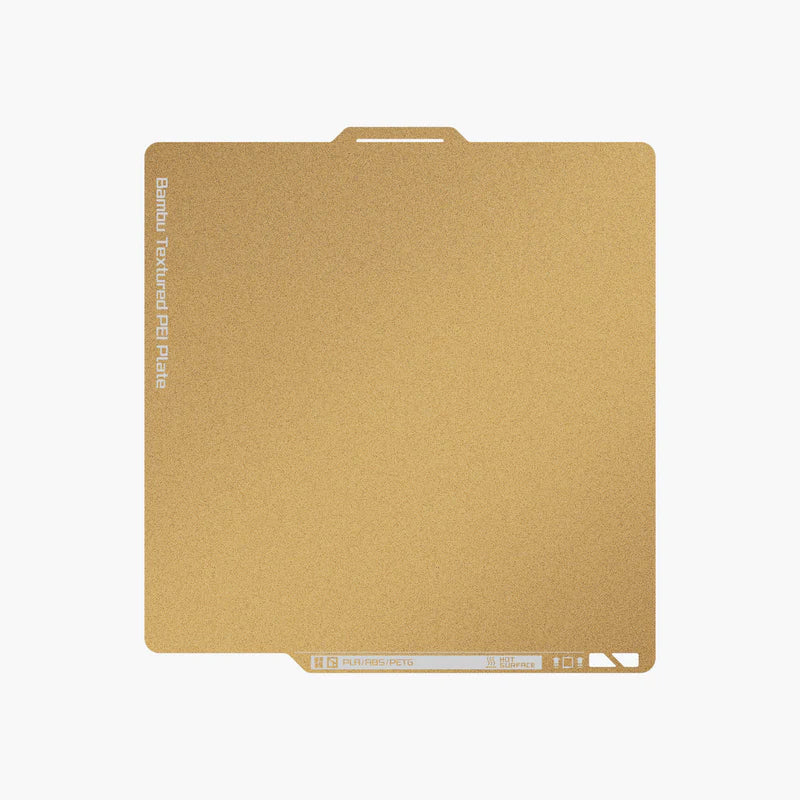

The Bambu Textured PEI Plate is a flexible magnetic build plate with sprayed dual-sided PEI coating. During printing, the plate will provide excellent adhesion and easy print removal after cooling.

Recommended Settings

Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements

	Hotbed Temperature	Glue Stick Required?	Upper Glass Cover Plate Removed?
PLA/PLA-CF/PLA-GF	45~60℃	No	Yes
ABS	90~100℃	No	No
PETG	60~80℃	No	No
TPU	35~45℃	Yes	Yes
ASA	90~100℃	No	No
PVA	45~60℃	No	Yes
PC/PC-CF	90~110℃	Yes	No
PA/PA-CF/PAHT-CF	90~110℃	Yes	No

Surface Finish

The Bambu Textured PEI Plate uses sprayed PEI to provide a tactile matte surface to areas of the model that touch the build plate

Benefits

Bambu Textured PEI Plate for increased surface lifetime

Most of the time, no glue-stick is required for regular filaments

Nice textured finish for the prints

Excellent adhesion and easy print removal

Downsides

Glue-stick is still recommended for some filaments and printing conditions

Cannot be used without heating the printing surface

LIDAR will have trouble correctly reading the print surface and the calibration can be affected

Product Specification

Surface temperature resistance	Up to 200℃	Usable print size	256*256 mm
Flexible spring steel thickness	0.4 mm	Texture PEI coating thickness	0.075 mm
Package Weight	320 g	Package size	2902904 mm

Considerations

When printing filament with a heat deflection temperature below 60℃ (such as PLA, PVA, TPU) the hotbed temperature is set above 45℃ and it is recommended to open the front glass door and remove the upper glass cover plate to avoid heat creep that can cause the material to soften, leading to abnormal extrusion or clogs

The Automatic Calibration for Flow Rate is not recommended, as the LIDAR will have trouble correctly reading the print surface and the calibration can be affected

Regularly clean the print surface with dish soap and hot water to eliminate any dust or grease residue, which might cause bad adhesion

Do not clean the Textured PEI with Acetone, as it might damage the PEI surface

Always wait for a few minutes before removing printed models to allow them to cool down for easy print removal
