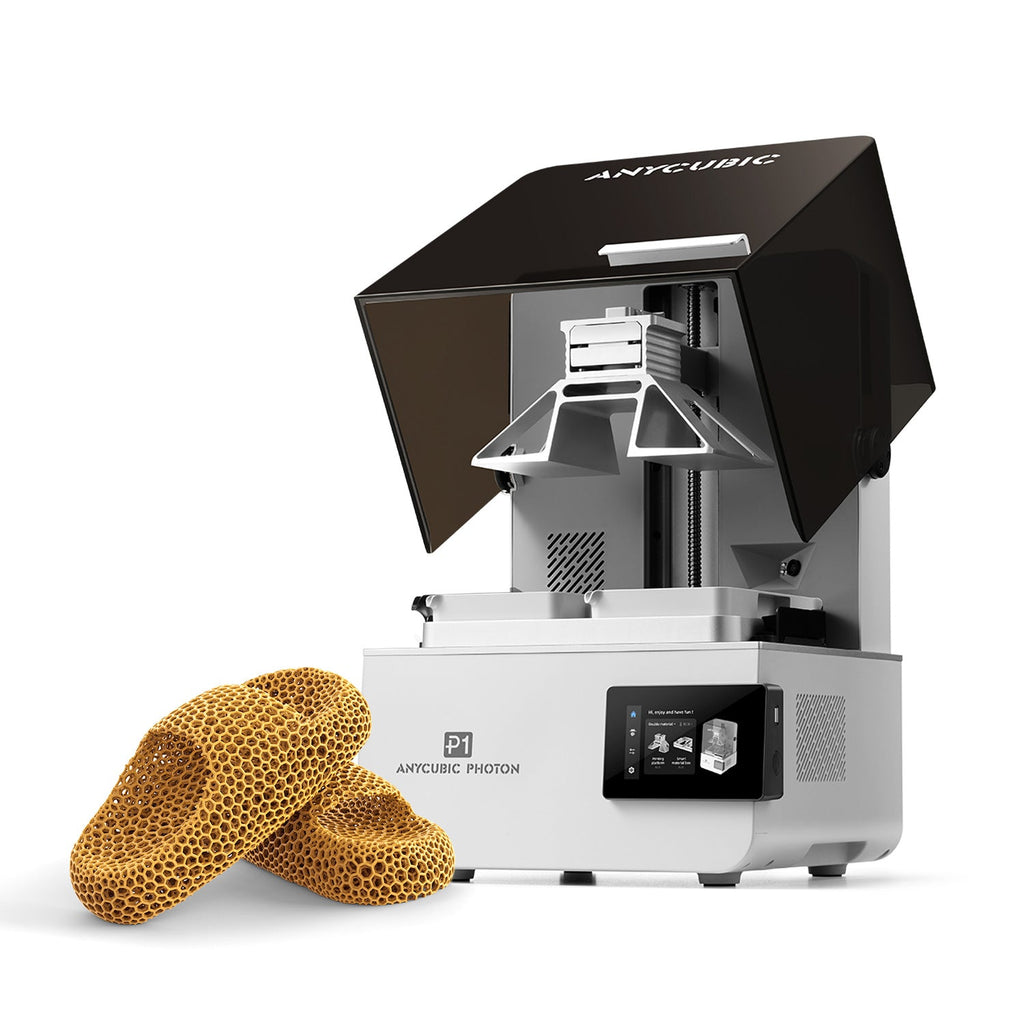

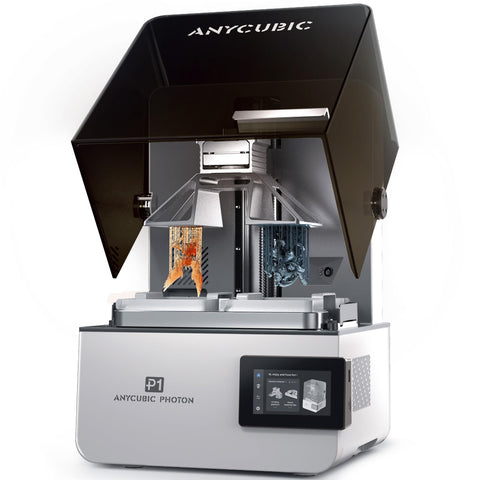

Anycubic Photon P1 Resin 3D Printer

Experience Near-Industrial Precision in a Desktop Format. The Anycubic Photon P1 is engineered for creators who refuse to compromise on detail. Whether you are producing intricate dental models, high-fidelity miniatures, or functional engineering prototypes, the Photon P1 delivers unwavering stability and professional-grade results.

Key Features:

• Unrivalled 14K Resolution: Featuring a 10.1-inch monochrome LCD with a staggering resolution, the Photon P1 achieves an XY resolution of 16.8x24.8 μm. Capture details thinner than a human hair with crisp edges and stunning surface clarity.

• LighTurbo 4.0 Light System: Equipped with an aspherical Fresnel lens and full-screen rolling calibration, this printer provides 92% light uniformity. This ensures consistent curing across the entire build plate, reducing dimensional drift.

• Wave Release Technology: Our innovative release system reduces peel force by up to 60%. This allows for smoother layer separation, protecting delicate supports and enabling the use of high-viscosity resins up to 8000cps.

• Industrial-Grade Z-Axis: Built with a precision-fitted ball screw and dual linear rails, the P1 offers Z-axis repeatability within 0.01 mm, virtually eliminating "Z-banding" for flawlessly smooth vertical surfaces.

• Smart Heated Resin Vat: The integrated 1000ml thermal-controlled vat maintains resin at an optimal 40°C. By managing viscosity, you get better resin flow and higher success rates even in colder environments.

• Intelligent Printing Assistant 3.0: Print with peace of mind. The P1 features real-time monitoring, including resin level inspection, residue detection, and build plate installation alerts to prevent screen damage.

Technical Specifications

• Build Volume: 223 x 126 x 230mm (6.5 Liters)

• LCD Screen: 10.1" 14K Monochrome LCD

• XY Resolution: 16.8 x 24.8μm

• Z-Axis: Dual Linear Rails + Industrial Ball Screw

• Light Source: LighTurbo 4.0 (COB + Fresnel Lens + Mask)

• Max Print Speed: 25-35 mm/h (Standard Resin) / Up to 170 mm/h (High-Speed Resin)

• Leveling: Auto-Leveling 3.0 with Real-time Feedback

• Connectivity: WiFi, USB 2.0, LAN

• Machine Weight: 13.6 kg

• Dimensions: 366 x 338 x 539mm

What’s in the Box?

• 1 x Anycubic Photon P1 Resin 3D Printer

• 1 x Precision-Ground Steel Build Plate

• 1 x 1000ml Thermal Resin Vat

• 1 x Tool Kit (Scrapers, Gloves, Masks, Funnels)

• 1 x USB Drive (with Slicing Software)

• 1 x Power Cable & User Manual
