Key Highlights
-
Generous Build Volume: 340 × 320 × 340 mm³ — large enough for ambitious functional prints and complex assemblies.
-
Multi-Color Printing Ready: Compatible with AMS 2 Pro and AMS HT units (up to 12 units / 24 filament slots) for up to 24-color printing.
-
Closed-Loop Servo Extruder: Enhanced extrusion control with feedback, reducing under/over extrusion and improving reliability.
-
High-Performance Thermal System
- 350 °C hotend to handle engineering materials
- 65 °C actively heated chamber to minimize warping -

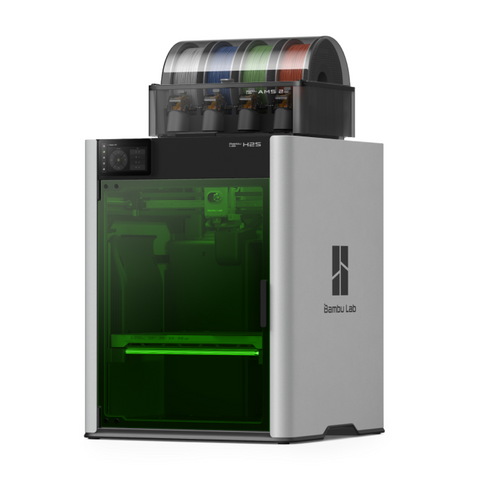

Laser / Cutting Module Support: Optional 10 W laser + cutting module can be added; toolpaths precisely aligned with onboard camera system.
-
Superior Accuracy & Calibration
- 5 µm optical motion calibration
- Auto Hole / Contour Compensation for precision hole fits
- Active vibration compensation for sharp edges and clean surfaces -
Intelligent Sensing & Safety
- 23 sensors + 3 cameras monitor filament flow, clogging, jamming, and environment
- Fire detection, enclosure sensors, emergency stop, and built-in flame retardant materials -
Quiet & Rigid Design
- Operates below ~50 dB (quiet mode)
- All-metal die-cast chassis for stability during high-speed printing -
Smart Connectivity & Flexibility
- Cloud control when online, or full offline mode for secure isolated usage
- Developer mode (MQTT, integrations) for advanced users -
User-Friendly & Modular
- Quick-swap nozzle system — change nozzles in seconds
- Supports Bambu Lab filament ecosystem
- Compatible with Bambu Suite software, MakerWorld model library & AI-assisted tools
Specs at a Glance
| Feature | Spec |
|---|---|
| Build Volume | 340 × 320 × 340 mm³ |
| Hotend Max Temperature | 350 °C |
| Chamber Temperature | Up to 65 °C |
| Motion Calibration | 5 µm optical |
| Max Toolhead Speed | up to 1000 mm/s (model dependent) |
| Acceleration | up to 20,000 mm/s² |
| Extrusion Force | Up to ~10 kg (servo system) |
| Noise Level | < 50 dB (operational, as claimed) |
| Connectivity | WiFi / USB |
| Safety Features | 23 sensors, fire detection, emergency stop, enclosure sensors |
| Supported Accessories | AMS 2 Pro, AMS HT, Laser & Cutting modules |
