- 1D & 2D barcode scanning capability
- Along with Bluetooth 4.0 low energy support, the high capacity Li-ion battery in the scanner provides up to 12 hours of continuous use per charge.
- Easy to Use, Easy to Carry

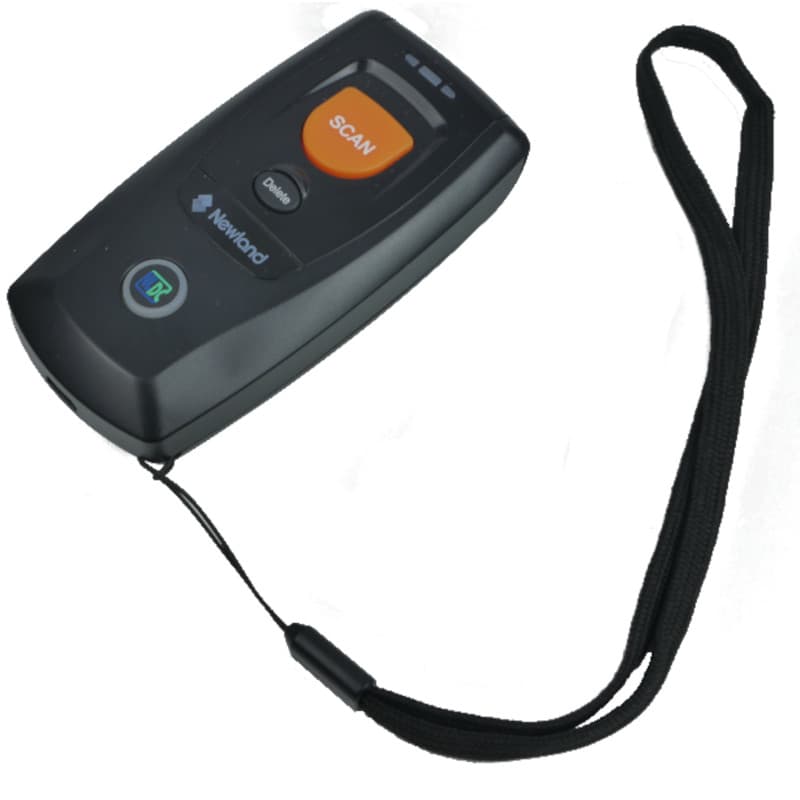

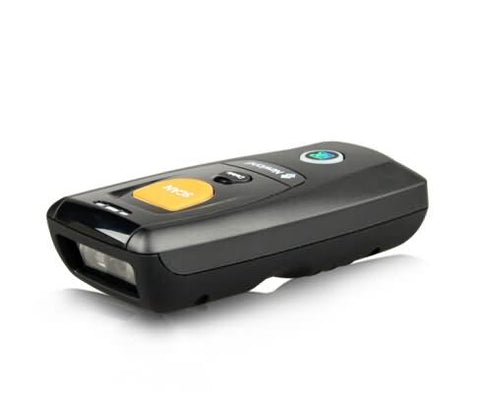

The NLS-BS80 sports stylish looks, a compact size and foolproof operation with merely three buttons requiring virtually no training.
- Bluetooth Communication
The NLS-BS80 equipped with Bluetooth 4.0 Class 1 technology enjoys enhanced data rate, five times faster than regular Bluetooth.
- iOS & Android Compatible
Supporting both iOS and Android operating systems, the NLS-BS80 outperforms its competitors at compatibility.Industrial-grade
This rugged IP42-sealed barcode scanner can withstand multiple 1.2m drops to concrete.
- Application Scenarios
O2O applications: Barcode-enabled mobile payments, e-coupons/e-vouchers, etc.Traditional applications: Store visits, retail store management, mobile clinics, distributor management, etc.
|Image Size||752×480 Pixels|
|Light Source||White LED|
|Interfaces||Micro USB, Bluetooth|
|Symbologies||2D: PDF417, QR Code, Data Matrix, etc.
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc.
|Decoding Depth||EAN-13 65mm-295mm (13mil)
Code 39 55mm-165mm (5mil)
Data Matrix 65mm-140mm (10mil)
QR Code 45mm-175mm (15mil)
PDF 417 65mm-135mm (6.67mil)
|Print Contrast Signal||≥ 30%|
|Wireless Standards||2.4 - 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR|
|Bluetooth||50m (Open Space)|
|Scan Angle||Pitch ±50°@ 0°Roll and 0° Skew
Row ±360°@ 0°Pitch and 0° Skew
Skew ±60°@ 0°Roll and 0° Pitch
|Mechanical/Electrical||Battery||3.7V 900mA , (Full Charge) 3.5 Hours|
|Current||Operating Current: 260mA (Bluetooth is on)
Standby Current: 10mA
|Input Voltage||5 ±0.25V DC|
|Dimensions H x W x L||24.5mmx 46mm x 88mm|
|Environmental||Operation Temperature||-20℃ to 50℃|
|Storage Temperature||-40°C to 70°C|
|Certifications||FCC Part15 Class B, CE EMC Class B|
