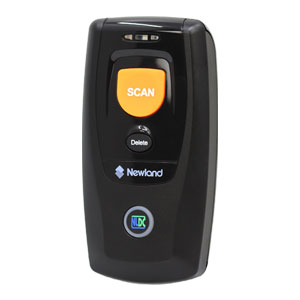

Newland BS80 2D Pocket Wireless Bluetooth Barcode Scanner
- 1D & 2D barcode scanning capability
- Along with Bluetooth 4.0 low energy support, the high capacity Li-ion battery in the scanner provides up to 12 hours of continuous use per charge.
- Easy to Use, Easy to Carry
The NLS-BS80 sports stylish looks, a compact size and foolproof operation with merely three buttons requiring virtually no training. - Bluetooth Communication
The NLS-BS80 equipped with Bluetooth 4.0 Class 1 technology enjoys enhanced data rate, five times faster than regular Bluetooth. - iOS & Android Compatible
Supporting both iOS and Android operating systems, the NLS-BS80 outperforms its competitors at compatibility.Industrial-grade - Durability
This rugged IP42-sealed barcode scanner can withstand multiple 1.2m drops to concrete. - Application Scenarios
O2O applications: Barcode-enabled mobile payments, e-coupons/e-vouchers, etc.Traditional applications: Store visits, retail store management, mobile clinics, distributor management, etc.
| Performance | Image Sensor | CMOS |
| Image Size | 752×480 Pixels | |
| Light Source | White LED | |
| Interfaces | Micro USB, Bluetooth | |
| Symbologies | 2D: PDF417, QR Code, Data Matrix, etc. 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc. |
|
| Decoding Depth | EAN-13 65mm-295mm (13mil) Code 39 55mm-165mm (5mil) Data Matrix 65mm-140mm (10mil) QR Code 45mm-175mm (15mil) PDF 417 65mm-135mm (6.67mil) |
|
| Print Contrast Signal | ≥ 30% | |
| Wireless Standards | 2.4 - 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR | |
| Bluetooth | 50m (Open Space) | |
| Scan Angle | Pitch ±50°@ 0°Roll and 0° Skew Row ±360°@ 0°Pitch and 0° Skew Skew ±60°@ 0°Roll and 0° Pitch |
|
| Mechanical/Electrical | Battery | 3.7V 900mA , (Full Charge) 3.5 Hours |
| Current | Operating Current: 260mA (Bluetooth is on) Standby Current: 10mA |
|
| Input Voltage | 5 ±0.25V DC | |
| Dimensions H x W x L | 24.5mmx 46mm x 88mm | |
| Weight | 62g | |
| Environmental | Operation Temperature | -20℃ to 50℃ |
| Storage Temperature | -40°C to 70°C | |
| Drop | 1.2m | |
| Sealing | IP42 | |
| Humidity | 5%~95% (non-condensing) | |
| Certifications | FCC Part15 Class B, CE EMC Class B |
