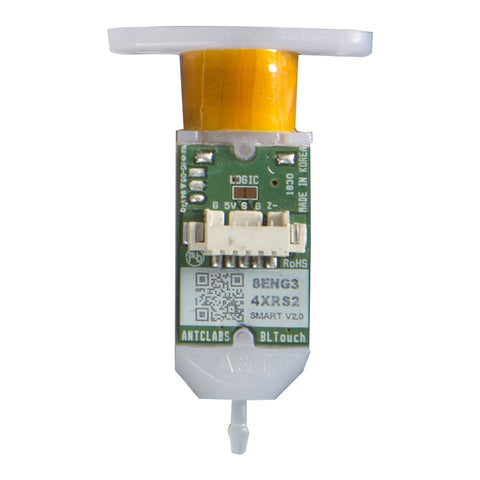

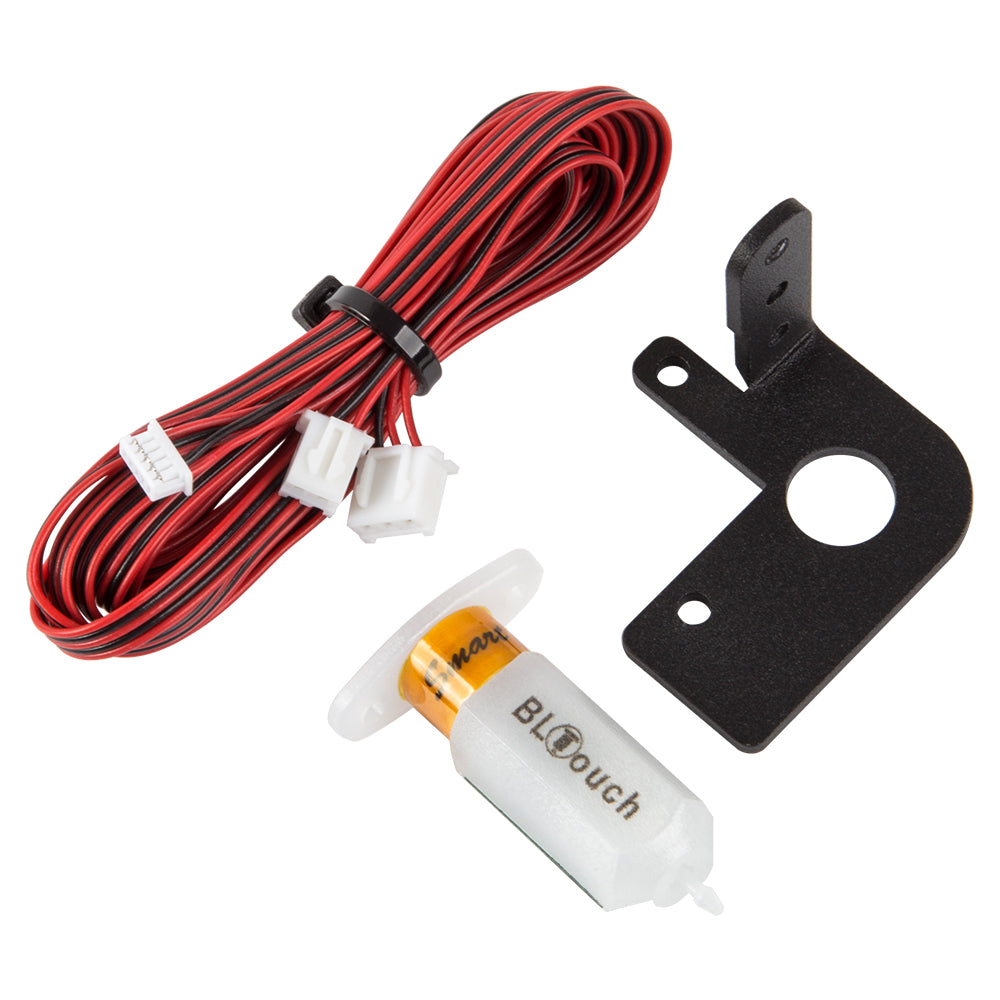

Creality Upgraded BL Touch Auto Bed Leveling Sensor For Creality V1 / V2

Creality 3D

Creality Upgraded BL Touch Auto Bed Leveling Sensor For Creality V1 / V2

$79.50

This is the upgraded version of the original upgraded kit provided by Creality 3D which can be used for Creality or V1 / V2 mainboard

V1 Mainboard

  • Ender Series

V2 Mainboard

  • CR-10 Series

Features:

  • BLTouch can be easily applied, since it has a small and simple structure. As BLTouch works as usual auto bed leveling sensor, Gathering information & setting up your firmware will be an easy task.
  • Self-test and alarm
  • BLTouch’s Standard Deviation in repeatability is around 0.005mm
Specifications:
Voltage: 5V
Current: 15mA
Maximum(Peak) Current: 300mA
Case Material:  Polycarbonat(PC)
Case Color: Semitransparent White
Cable Length: 150mm
PCB & Soldering: RoHS, Lead Free (Pb Free)

Wiring: (BLTouch can be operated in the following condition.)
​One I/O for control (Orange wire : PWM or Software PWM)
One I/O for Zmin(White wire : endstop / Z-probe)
GND and +5V power
This is the upgraded version of the original upgraded kit provided by Creality 3D which can be used for Creality V1 mainboard. It include but not limited to the following 3d printer: Ender-3 / Ender-3 Pro / CR-10

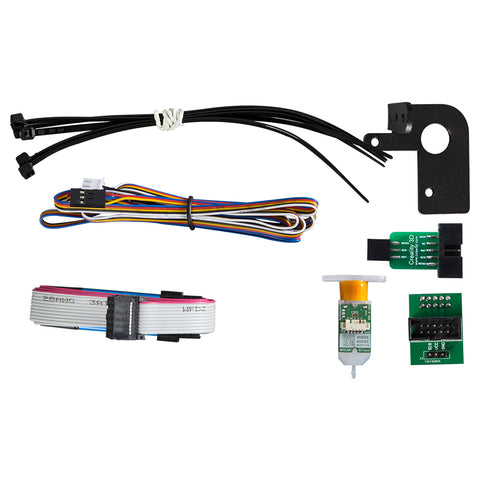

Packing includes:
1 x BLTouch
1 x Connector
1 x Tie
1 x Rack
2 x M3X8
1 x Pinboard A
2 x M3X6

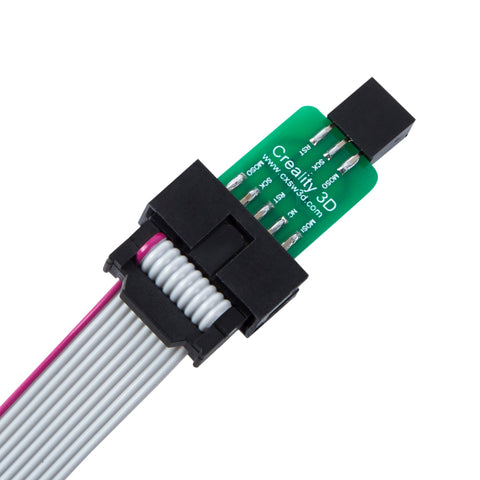

1 x ISP Pinboard

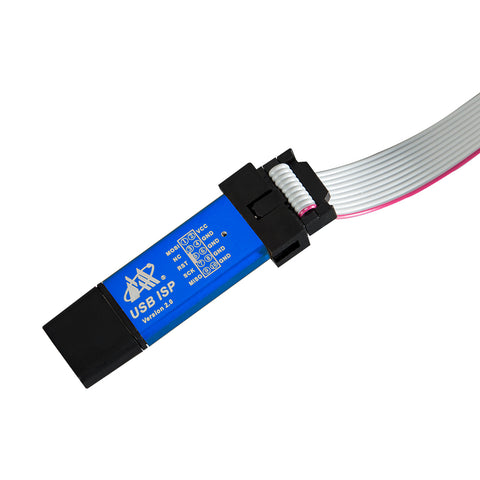

1 x Burner
