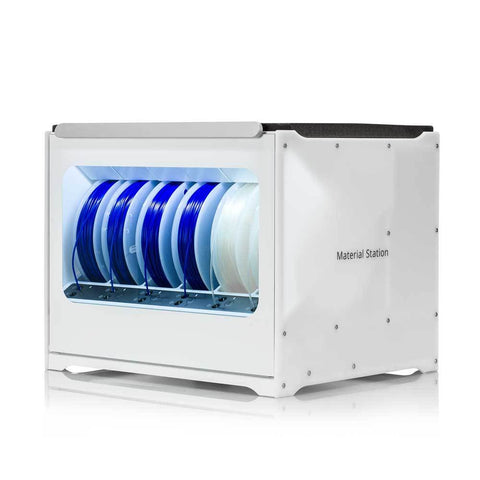

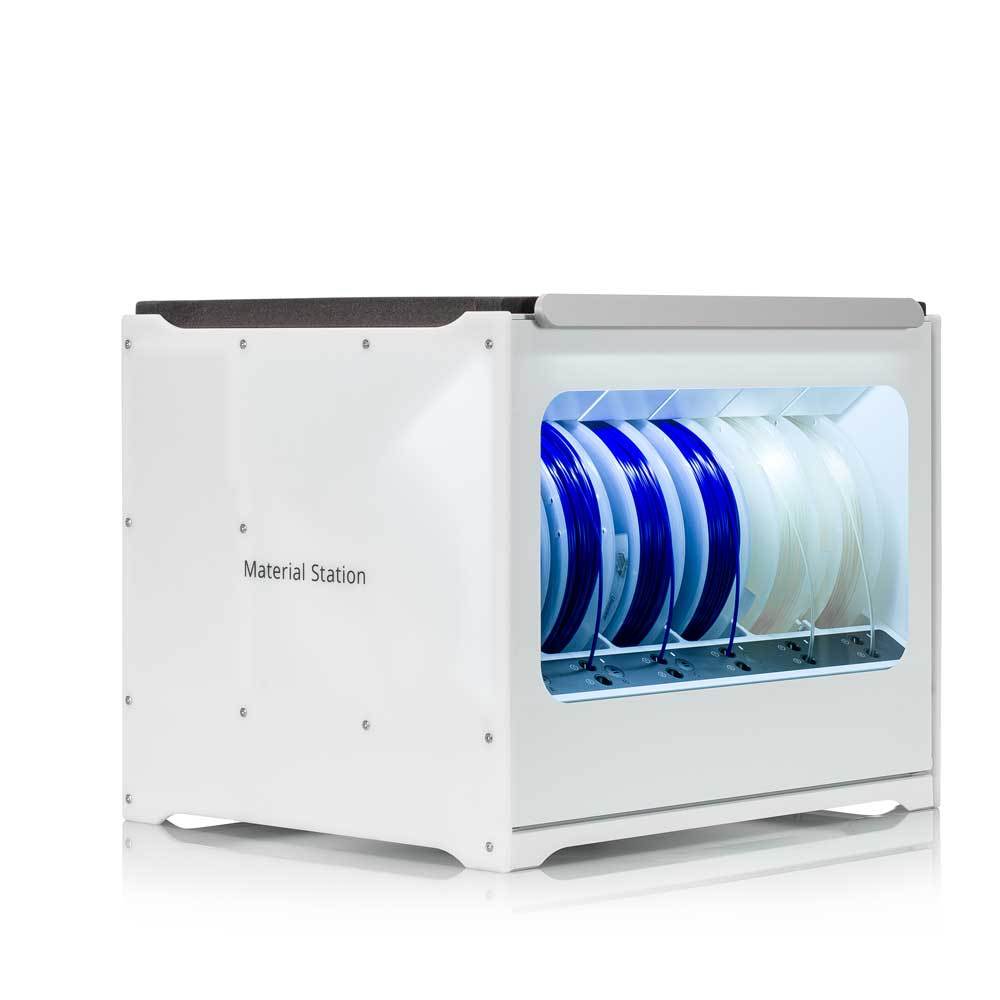

Ultimaker S5 Material Station - Automated material handling

Ultimaker

Ultimaker S5 Material Station - Automated material handling

$4,500.00

The Ultimaker S5 Material Station was designed and tested to be an automated material delivery workhorse.

Its 6 spool bays give you huge capacity for bigger prints, more small batches, or more flexibility in your setup – which means higher uptime and fewer manual operations.

Each bay is NFC-enabled and compatible with:

  • All Ultimaker filaments (not including 350-gram spools)
  • All materials from leading brands with predefined settings in Ultimaker Cura Marketplace
  • Including glass or carbon-reinforced materials
  • Any other third-party 2.85 mm filament with a spool that fits

The Ultimate 3D Printing Workflow

If you’re someone who wants to effortlessly 3D print parts and models in house, then the Ultimaker S5 Material Station can store and manage your perfect material setup:

  • Manufacturers can easily color-code factory tools
  • Engineers can print functional prototypes and end-use parts with advanced mechanical properties – including 6x spools of glass or carbon fiber composites for high-strength parts
  • Architects can load up to 4.5 kg of white PLA for large context models
  • And so many more…

Simply load material in any order, at any time. Even while another spool is printing. Material management has never been easier!

The Ultimate 3D Printing Workflow

If you’re someone who wants to effortlessly 3D print parts and models in house, then the Ultimaker S5 Material Station can store and manage your perfect material setup:
  • Manufacturers can easily color-code factory tools
  • Engineers can print functional prototypes and end-use parts with advanced mechanical properties – including 6x spools of glass or carbon fiber composites for high-strength parts
  • Architects can load up to 4.5 kg of white PLA for large context models
  • And so many more…

Simply load material in any order, at any time. Even while another spool is printing. Material management has never been easier!

SPECIFICATIONS


Filament Diameter: 2.85mm

Material Spool Dimensions:

  • Width: 50 - 70 mm (2 - 2.7 in)
  • Diameter: 197 - 203 mm (7.8 – 8 in)
  • Core diameter: > 98 mm (3.8 in)

Material Capacity: 6 spools

Material Recognition: Auto-recognition enabled with NFC scanner

Feeder Type: Dual-geared, abrasion-resistant

Data Connection: UMB connection (included)

Power Input: 85 - 264VAC, max. 125 W

Power Output: Max. 10A (for Ultimaker S5)

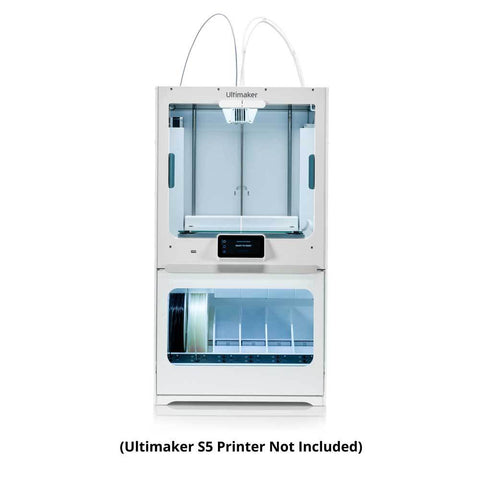

Compatible 3D Printers: Ultimaker S5

Compatible Materials: Optimized for Ultimaker PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP, TPU 95A, PVA, Breakaway (Also supports third-party materials)

Physical Dimensions: 491 x 438 x 400 mm (19.3 x 17.2 x 15.7 in)

Net Weight: 17.7 kg (39 lbs)

Warranty: One Year

This item is currently restocking. It will take up to 3 weeks to ship.
